Outswing
Folding Doors

A different approach to removing the lines between indoors and out. When open, these moving glass walls fold up to beautifully frame your view. When closed, they create a stately wall of light.

Up to 10' tall and 48' wide
Top hung system allows for easy operation
Doors can open from left, right or center
Contemporary panel widths up to 48” wide
Available with Stormwatch® protection for coastal areas
Pass-through window configurations available

Need help? Find an Andersen Certified Contractor in your area.

REQUEST A QUOTE

SEE HOW OTHERS ARE USING THIS PRODUCT

^{Tag on} ^{using #andersenwindows}

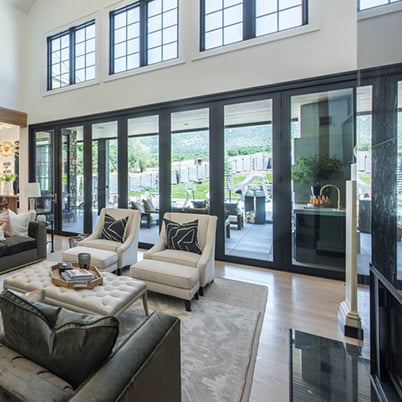

Bring the Outside In and the Inside Out

When open, these moving glass walls fold up to beautifully frame your view. When closed, they create a stately wall of light.

What's It Made Of?

Aluminum-clad exterior with a rich wood interior. Wood exterior panel and frame construction also available.

MATERIALS

Energy Efficiency

The aluminum clad panel has a dual weatherstrip design at the bottom and along the panel edges, providing a weathertight seal.

LEARN MORE

Product Options

Panel styles

Colors

Hardware

Glass

Screens

Grilles

Coastal

Info sheet

Smart home

Panel Styles

Panels are available in contemporary (48” max width) or traditional (39” max width) styles.

Contemporary Aluminum-Clad Wood

Contemporary aluminum-clad wood panels feature 3 11/16” stiles and rails with a panel thickness of 2 ¼”

Traditional Aluminum-Clad Wood

Traditional panels feature 4 11/16” stiles and top rail with a choice of 4 11/16”, 8” or 12” bottom rail heights with a panel thickness of 1 ¾”

^{_{8” bottom rail height shown}}

^{*Actual wood is Sapele, a non-endangered species of mahogany, grown in Africa, with color and characteristics similar to American mahoganies.}

Hardware Styles

Albany

Black, Stone, White

Tribeca®

Stone, White, Black

Anvers®

Bright brass, Oil rubbed bronze, Satin nickel

Newbury®

Antique brass, Bright brass, Oil rubbed bronze, Satin nickel

Encino®

Distressed bronze, Distressed nickel

Yuma®

Distressed bronze, Distressed nickel

Ashley Norton

2 plate styles
10 finish options
7 handle designs

Alessa

Dark bronze, Dark oil rubbed, Flat black, Matte black, Natural bronze, Polished chrome, Polished nickel, Satin nickel, White bronze, White medium

Traditional plate

Alexis

Dark bronze, Dark oil rubbed, Flat black, Matte black, Natural bronze, Polished chrome, Polished nickel, Satin nickel, White bronze, White medium

Traditional plate

Apollo

Dark bronze, Dark oil rubbed, Flat black, Matte black, Natural bronze, Polished chrome, Polished nickel, Satin nickel, White bronze, White medium

Urban plate

Atlas

Dark bronze, Dark oil rubbed, Flat black, Matte black, Natural bronze, Polished chrome, Polished nickel, Satin nickel, White bronze, White medium

Urban plate

Churchill

Dark bronze, Dark oil rubbed, Flat black, Matte black, Natural bronze, Polished chrome, Polished nickel, Satin nickel, White bronze, White medium

Traditional plate

Empire

Dark bronze, Dark oil rubbed, Flat black, Matte black, Natural bronze, Polished chrome, Polished nickel, Satin nickel, White bronze, White medium

Traditional plate

Meridian

Dark bronze, Dark oil rubbed, Flat black, Matte black, Natural bronze, Polished chrome, Polished nickel, Satin nickel, White bronze, White medium

Urban plate

Hardware Finishes

Baldwin

1 plate style
5 finish options
6 handle designs

L021

Oil rubbed bronze, Satin brass, Satin nickel, Non-Lacquered brass, Satin black

L023

Oil rubbed bronze, Satin brass, Satin nickel, Non-Lacquered brass, Satin black

5162

Oil rubbed bronze, Satin brass, Satin nickel, Non-Lacquered brass, Satin black

5173

Oil rubbed bronze, Satin brass, Satin nickel, Non-Lacquered brass, Satin black

5455V

Oil rubbed bronze, Satin brass, Satin nickel, Non-Lacquered brass, Satin black

5485V

Oil rubbed bronze, Satin brass, Satin nickel, Non-Lacquered brass, Satin black

Hardware Finishes

FSB^®

1 plate style
4 handle designs
2 finish options

1035

Satin stainless steel, Black anodized aluminum

1075

Satin stainless steel, Black anodized aluminum

1076

Satin stainless steel, Black anodized aluminum

1102

Satin stainless steel

Hardware finishes

Additional Hardware Options

Locking System

The folding outswing door has a multi-point locking system with a hook bolt above and below the center deadbolt along with shoot bolts on the non-active panels that lock into the head and sill. This system provides a weathertight seal and enhanced security.

Pull Handle

Available in a matte black or satin stainless steel finish.

Flush Bolt

Available in a matte black or satin stainless steel finish.

Hinges

Available in a matte black or satin stainless steel finish.

Concealed Shoot Bolt Handle

Available in brushed stainless or bronze stainless

Magnetic Catches

Magnetic catches are used help keep panels stacked together when open. The larger catches are used to prevent door handle from hitting adjacent panel when opened.

Energy Performance Details

	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.
SmartSun™	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.
SmartSun with HeatLock™ Coating	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.
Low-E4®/Low-E	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.
Low-E4 with HeatLock™ Coating	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.
Sun	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.
PassiveSun®	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.
PassiveSun with Heatlock® Coating	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.
Triple-Pane (with Low-E coatings on two surfaces)	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.
Clear Dual-Pane	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.

Center of glass performance only. Ratings based on glass options available as of June 2021.

View ENERGY STAR® map

illustration big doors retractable screens

Big door retractable screen

Designed to help manage insects and other outdoor intrusion while enjoying fresh air and uninterrupted views. The screen is fully retained within the frame on all sides and retracts discreetly when not in use to remove visual distractions and bring the outdoors in. Fits openings up to ~30’ wide and 10’ tall.

thumbnail image of big doors info sheet document

Big door retractable screen info sheet

Learn more about the big doors retractable screens by downloading the info sheet.

View info sheet

Big door retractable screen FAQ

Read the FAQs to find out more about big doors.

See FAQ

Big Doors Retractable Screens

Enhance your indoor outdoor oasis with retractable screens for MultiGlide™ and Folding Outswing Doors. See the screen in action.

*Proper care & maintenance is required to support the limited warranty for the Big Door Retractable Screen. Visit the Andersen Help Center for more details.

Grille Types

Full Divided Light

Give any window an authentic look with full divided light grilles that are permanently applied to the interior and exterior of your window with a spacer between the glass.

Simulated Divided Light

An economical solution with traditional beauty, our Simulated Divided Light features fixed exterior and interior grilles without an internal spacer.

Removable Interior Wood Grilles

Our removable wood grilles are installed on the interior surface. They are available with an optional surround and an optional permanently applied exterior grille.

Finelight™ Grilles- Between-the-Glass

Aluminum grilles conveniently placed between two panes of glass make the glass easy to clean inside and out.

Grille Profiles

Interior Wood: Ovolo (Colonial)

Widths:

5/8"
7/8"
1 1/8"
1 1/2"
2 1/4"

Available with:

Full Divided Light
Simulated Divided Light

Interior Wood: Contemporary

Widths:

5/8"
7/8"
1 1/8"
1 1/2"
2 1/4"

Available with:

Full Divided Light
Simulated Divided Light

Exterior Aluminum: Chamfer

Widths:

5/8"
7/8"
1 1/8"
1 1/2"
2 1/4"

Available with:

Full Divided Light
Simulated Divided Light
Removable Interior Wood with Optional Permanently Applied Exterior Grille

Exterior Aluminum: Contemporary

Widths:

5/8"
7/8"
1 1/8"
1 1/2"
2 1/4"

Available with:

Full Divided Light
Simulated Divided Light
Removable Interior Wood with Optional Permanently Applied Exterior Grille

Removable Interior Wood Grilles

Ovolo or Contemporary profiles in 7/8" width

Finelight Grille Profiles and Widths

Flat or Contoured profiles in 5/8" or 1" widths

Folding Coastal Doors

PG Upgrade (PG50) option or PG Upgrade with Impact glass options with high performance impact-resistance glass or monolithic impact-resistance glass
Contemporary profile maximizes light and view
Units built as tall as 10’ with FL Product Approvals, and Hallmark certified rating for air, water and structural performance
Standard AAMA 2605 exterior finish
Corrosion resistant multi-point locking system secures the door firmly
Rough openings as wide as 24', panels up to 28.75 sq ft.
Panels up to a maximum 48" wide to 7' 6 5/8" tall, 45 1/4" wide to 8' tall, 40" wide to 9' tall and 36" wide to 10' tall
Maximum weight per panel is 250 lbs.
¾ and 2/3 light intermediate rail with panel option
Standard concealed shoot bolt hardware available in brushed stainless steel or bronze stainless steel

Download info sheet

More Product Details

Product Info Sheet

Use this quick reference guide to learn about the available colors, finishes, glass, and hardware options for this product.

View options for this product

Coastal Info Sheet

Use this quick reference guide to learn about the available colors, finishes, glass, and hardware options for this product.

View options for this product

Yale® Assure Lock® for Andersen® patio doors

Monitor, lock and unlock from anywhere and never worry about carrying or losing keys again. The sleek new key free lock includes Bluetooth® technology for keyless unlocking and is compatible with Z-Wave® for integration with a wide range of smart home platforms.

entry door hardware using yale assure lock

See a project featuring this product:

Country Manor Home

Alpine, Utah

Just outside of Salt Lake City, and within the shadow of Mount Timpanogos, sits this majestic family home. Four seasons and 360-degrees of natural beauty provide a constant supply of scenery.

PRODUCTS SHOWN

Folding Outswing Door

View Details

PRODUCTS SHOWN

A-Series Picture Windows Folding Outswing Door

View Details

PRODUCTS SHOWN

A-Series Picture Windows Folding Outswing Door

View Details

Sizing

Sill options

Architectural tools

Installation

Performance

Warranty

Sizing

Due to the array of features and options available on the Folding Outswing door, we’ve created a Sizing Calculator to help provide you with complete sizing information.

View Sizing Calculator

Sill Options

On-Floor Drainage Sill

The on-floor drainage sill offers a PG40* rating for sizes up to 24' wide and 8' tall and PG30 rating for sizes up to 24' wide and 10' tall. Available in Gray or Bronze.

^{*Performance Rating: Class SP-PG40 Size Tested 159 x 95.5 in, for a door with standard sill. DP = +40psf/-40psf. Class SP-PG30 Size Tested 159 x 119.5 in, for a door with standard sill. DP = +30psf/-30psf. Doors with other sill options are not rated.}

On-Floor Low-Threshold Sill

The on-floor low-threshold sill option provides easy accessibility. Available in Aluminum or Bronze.

^{_{Note: On-Floor Low-Threshold Sill is not tested for water performance.}}

Flush Sill

The flush sill option places the track even with the finished floor. Available in Bronze.

_{^{Note: Flush sill is not tested for water performance.}}

Architectural Tools

Product	Description	Material	2D - Detail File	CSI Guide Spec
Contemporary Clad - Folding Outswing ^{(3 11/16" stiles and rails)}	Contemporary Panels Jambs On-Floor Drainage Sill Flush Sill On-Floor Low-Threshold Sill High Performance Sill Astragal Options and Accessories	Aluminum Clad
Traditional Clad - Folding Outswing ^{(4 11/16", 8" and 12" bottom rail options) (4 11/16" stiles and top rail)}	Traditional Panels Jambs On-Floor Drainage Sill Flush Sill On-Floor Low-Threshold Sill High Performance Sill Astragal Options and Accessories	Aluminum Clad

Product

Description

Material

2D - Detail File

CSI Guide Spec

Contemporary Clad - Folding Outswing
^{(3 11/16" stiles and rails)}

Contemporary Panels
Jambs
On-Floor Drainage Sill
Flush Sill
On-Floor Low-Threshold Sill
High Performance Sill
Astragal
Options and Accessories

Aluminum Clad

Traditional Clad - Folding Outswing
^{(4 11/16", 8" and 12" bottom rail options)

(4 11/16" stiles and top rail)}

Traditional Panels
Jambs
On-Floor Drainage Sill
Flush Sill
On-Floor Low-Threshold Sill
High Performance Sill
Astragal
Options and Accessories

Aluminum Clad

Installation Guides

Installation instructions include preparing the rough opening, sealing, shimming, fastening, flashing, and water management.

Find your guide

thumbnail image of the folding doors prep guide

Site Prep Guide

Set-up guide to support the door’s opening preparation and installation instructions, and assists in the construction of the rough opening.

Site prep guide

Magnetic Installation Guide

Guide is for Andersen® clad outswing contemporary folding doors.

Open guide

Retractable Insect Screen Sill Shim Application

Open guide

Retractable Screen Installation Videos

Folding Outswing Door


Panel Style	Traditional Alum-Clad Wood	Traditional Alum-Clad Wood	Traditional Alum-Clad Wood	Traditional Alum-Clad Wood	Contemporary Alum-Clad Wood	Contemporary Alum-Clad Wood
Configuration	1L3R⁶	2L2R	1L3R⁶	2L2R	3L1R⁶	3L1R⁶
AAMA/WDMA/CSA 101/IS2/A440-08 and -11	Class LC-PG40¹ Size Tested 159.8" x 95.5"³	Class LC-PG40¹ Size Tested 159.8" x 95.5"³	Class LC-PG30¹ Size Tested 159.8" x 119.5"⁴	Class LC-PG30¹ Size Tested 159.8" x 119.5"⁴	Class LC-PG40¹ Size Tested 159.8" x 95.5"³	Class LC-PG30¹ Size Tested 159.8" x 119.5"⁴
DESIGN PRESSURE (DP)	+40/-40	+40/-40	+30/-30	+30/-30	+40/-40	+30/-30
AIR INFILTRATION (CFM/FT²)	0.06	0.05	0.06	0.06	0.08	0.08
WATER TEST PRESSURE (PSF)	6.0	6.0	4.5	4.5	7.5⁵	7.5⁵
FLORIDA APPROVAL FL# 14346	Non-Impact	Non-Impact	Non-Impact	Non-Impact	Non-Impact	Non-Impact

Coastal Folding Outswing Door


Panel Style	Contemporary Alum-Clad Wood	Contemporary Alum-Clad Wood	Contemporary Alum-Clad Wood
Configuration	4R	3L3R⁷	4L2R
AAMA/WDMA/CSA 101/IS2/A440-08 and -11	Class LC-PG50² Size Tested: 146.6” x 119.5”⁴	Class LC-PG50² Size Tested 220.1” x 119.5”⁴	Class LC-PG50² Size Tested 220.1” x 119.5”⁴
DESIGN PRESSURE (DP)	+50/-50	+50/-50	+50/-50
AIR INFILTRATION (CFM/FT²)	0.04	0.09	0.07
WATER TEST PRESSURE (PSF)	7.52	7.52	7.52
FLORIDA APPROVAL FL# 14346	HVHZ Impact & Non-Impact	HVHZ Impact & Non-Impact	HVHZ Impact & Non-Impact

_•_{"Performance Grade (PG)" ratings may vary from tested performance rating for larger or smaller units of a particular type. Some units may not be rated.}

_{•This data is accurate as of October 2020. Due to ongoing product changes, updated test results or new industry standards, this data may change over time.}

_{•Where designated, Andersen® products are certified and labeled to the requirements of the Hallmark Certification Program. Actual performance may vary based on variations in manufacturing, shipping, installation, environmental conditions and conditions of use.}

_{•DP Varies, see Florida Approval FL# 14326 for details}

_{•Contact your Andersen supplier for more information}

_Notes

_{¹ Standard on-floor drainage sill must be used for performance ratings}

_{² High performance on-floor drainage sill must be used for performance ratings}

_{³ Actual door size tested; certification maximum door size 288” x 95.5”}

_{⁴ Actual door size tested; certification maximum door size 288” x 119.5”}

_{⁵ Tested with optional high-profile sill stop. Test value without optional high-profile sill stop is 6.0 P.S.F}

_{⁶ Tested with standard multi-point hardware}

_{⁷ Tested with corrosion resistant multi-point hardware}

A Warranty You Can Trust

At Andersen, we pride ourselves in crafting durable, long-lasting products. That resilience allows us to offer some of the best warranties in the industry. They're even transferable should you sell your home. With our exclusive Owner-to-Owner® limited warranties, you get peace of mind, plus real added value.

View warranty

Photo Gallery

More Product Details

Product Info Sheet

Use this quick reference guide to learn about the available colors, finishes, glass, and hardware options for this product.

View options for this product

Compare Big Doors

Compare features and options of Andersen big doors.

Compare big doors

Product Guide

Created for trade professionals, product guides provide high-level overviews of the features and options available with each Andersen® product series. Additionally, they include detailed information on the construction of each product type, along with sizing charts and section details. Product performance data is also included.

Download View Product Guide

OutswingFolding Doors

SEE HOW OTHERS ARE USING THIS PRODUCT

Bring the Outside In and the Inside Out

What's It Made Of?

Energy Efficiency

Product Options

Panel styles

Colors

Hardware

Glass

Screens

Grilles

Coastal

Info sheet

Smart home

Panel Styles

Contemporary Aluminum-Clad Wood

Traditional Aluminum-Clad Wood

Exterior Colors

Anodized Finish Options

Interior Options Wood Species

Painted Options

Hardware Styles

Albany

Tribeca®

Anvers®

Newbury®

Encino®

Yuma®

Hardware Finishes

Ashley Norton

Alessa

Alexis

Apollo

Atlas

Churchill

Empire

Meridian

Hardware Finishes

Baldwin

L021

L023

5162

5173

5455V

5485V

Hardware Finishes

FSB®

1035

1075

1076

1102

Hardware finishes

Additional Hardware Options

Locking System

Pull Handle

Flush Bolt

Hinges

Concealed Shoot Bolt Handle

Magnetic Catches

Energy Performance Details

U- FACTOR

How well a product prevents heat from escaping.

SOLAR HEAT GAIN COEFFICIENT

How well a product blocks heat caused by sunlight.

VISIBLE LIGHT TRANSMITTANCE

How much visible light comes through a product.

UV PROTECTION

How well a product blocks ultraviolet rays.

SmartSun™

U- FACTOR

How well a product prevents heat from escaping.

SOLAR HEAT GAIN COEFFICIENT

How well a product blocks heat caused by sunlight.

VISIBLE LIGHT TRANSMITTANCE

How much visible light comes through a product.

UV PROTECTION

How well a product blocks ultraviolet rays.

SmartSun with HeatLock™ Coating

U- FACTOR

Outswing
Folding Doors

Interior Options

Wood Species

FSB^®
